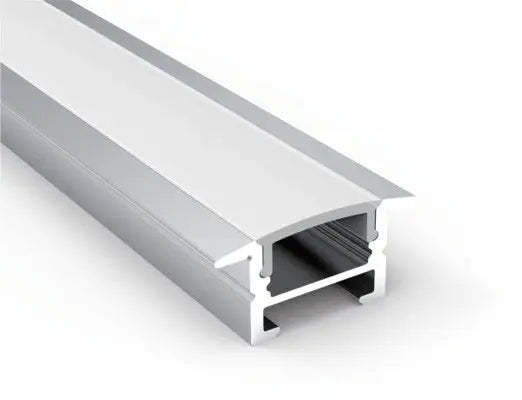

Recessed LED Channel with Trim - 25mm x 12mm

Specifications:

• External Dimensions (WxH): 25mm x12mm
• Max Strip Light Width: 12mm
• Material: Anodized aluminium

Applications:

• Architectural Lighting: Highlighting recessed areas or specific architectural details in residential or commercial spaces.
• Cabinet Lighting: Under-cabinet or inside cabinet lighting in kitchens or display cases, providing direct or ambient illumination.
• Staircase Lighting: Illuminating stair treads or the underside of handrails for both aesthetics and safety.
• Retail Displays: Used in shops and boutiques to highlight products and create an attractive display.

Additional information:

• End caps and mounting brackets are sold separately in the 'you may also need' section above
• Available in a choice of black and silver finishes
• Choice of 2 or 3 metre lengths for each colour
• Choose your diffuser with a choice of opal, transparent or black
• To recess, route a groove measuring 16mm in width and at least 10mm in depth

This recessed LED aluminium channel is a great profile for practically any project, whether a kitchen, bar or workplace, with a 2.5mm trim on both sides ideal for recessing.

These Recessed Flat Aluminium Channels are ideal for housing and protecting your LED strips. They enable a recessed installation into grooves or furniture pieces while preventing undesirable secondary refraction from reflecting surfaces. They also serve as a heat sink for the installed LED strip light, extending their lifespan and reducing brightness loss.

Each channel is available with an opal, semi-clear or transparent diffuser, which helps diffuse the light from each LED in a more consistent pattern and prevents glare.
