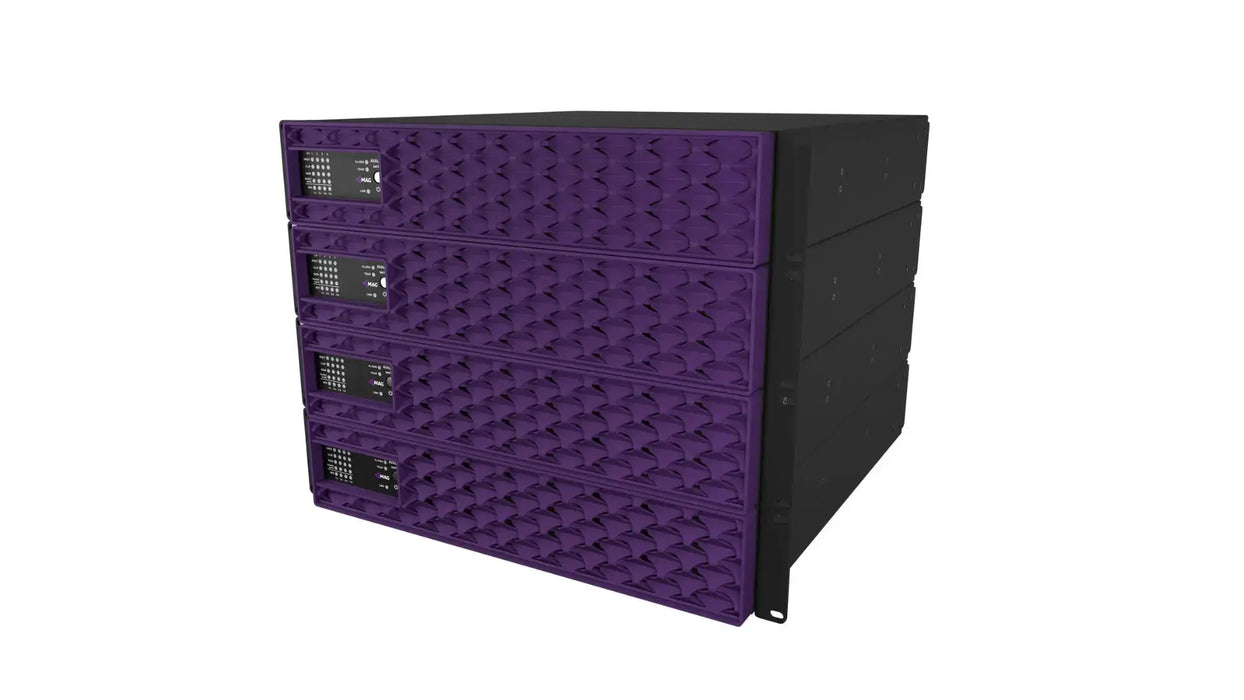

MAG Theatron - Avalon Top Amplifier
SKU MAGT-AVA-AMP-TOP
by Mag Theatron
Login for prices
DSP amplifier
4 Channel Digital Amplifier with DSP - Digital and Analogue Input - For Avalon Screen Speakers
-
- Class D high efficiency
- 48-bit/96 kHz FIR processing
-
Frequency range: 16 – 24000 Hz
The AVALON Amp epitomizes unparalleled sound power delivery, merging noise-free, energy efficient Class D amplification with next-generation DSP technology, elevating it to the echelon of the finest cinema amplifiers. With 48-bit/96 kHz FIR processing, the AVALON Amp unlocks the full potential of your AVALON Ultimate Screen Array, offering an auditory experience that is nothing short of exceptional.
Technical Data
| Frequency range, Hz | 16 – 24000 |
| Channel count | 1 x AVALON TOP HF 1 x AVALON TOP MF 2 x AVALON TOP LF |
| Web UI | Theatron Web UI |
| DSP | 24-Bit, 96 kHz, FIR |
| Input Sensitivity, dBu | +16 / +4 |
| Maximum input level, dBu | +22 / +10 |
| Input impedance, kOhm | 10 (unbal.) / 20 (bal.) |
| Crosstalk separation dB @ 1 kHz | 100 |
| THD (from 0,1 W to full power), % | <0,5 (typical <0,01%) |
| Power consumption (1/8 of max output power @ 8 Ohm), VA |
100 |
| Damping factor (8 Ohm, 100 Hz) | > 500 |
| S/N ratio, dB | 108 |
| Connectors | 8 x XLR bal. input 2 x 4-pin Phoenix speaker terminal RJ-45 Ethernet AES3 input 2 x 3,5” TRS trigger in/out |
| Power consumption (1/8 of max output power @ 8 Ohm), VA |
600 |
| Damping factor (8 Ohm, 100 Hz) | > 500 |
| S/N ratio, dB | 100 |
| Connectors | 2x RCA unbal. input 2x XLR female bal. input 2x XLR male bal. output 4-pin Phoenix speaker terminal RJ-45 Ethernet |
| Dimensions (W x H x D), mm | 486 x 87 x 505 (2U) |
| Net weight, kg | 8.6 |
Specification and Drawings
Manuals
Extras
Delivery time
2-3 weeks
