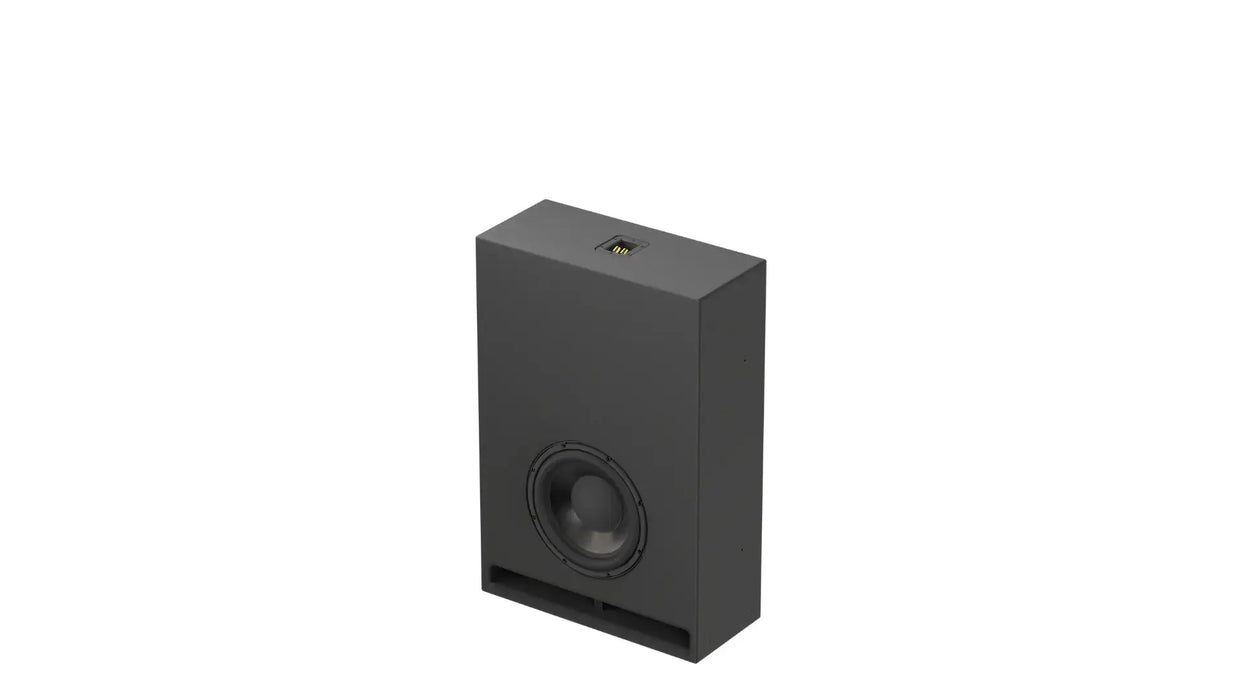

MAG Theatron Hammer-12
Subwoofer
- Components: 12″
- Frequency range: 20 – 160 Hz
- Max continuous SPL: 121 dB
-
Power rating: 800 W
HAMMER-12 is a home cinema subwoofer compatible with M-12 main systems, allowing to create the effective screen array. HAMMER-12 packs solid power and a considerable low-frequency threshold, making it indispensable for high-tiered home cinema installations where space is of the essence.
Compact subwoofers are meant to deliver a new immersive depth into your cinema experience. Equipped with long-excursion drivers, these speakers are fine-tuned for precise bottom-end reproduction.
Carefully designed components, involving cones with glass-fiber reinforcement, help to achieve optimal values in terms of smooth frequency response and superior sound pressure level.
Technical Data
| Frequency response (±3 dB), Hz | 22 – 120 |
| Frequency range (-10 dB), Hz |
20 – 160 |
| Max continuous SPL, dB | 121 |
| Sensitivity (1W/1m, half-space), dB | 92 |
| High-frequency driver | 12-inch, 3-inch voice coil glass-fibre reinforced cone |
| Nominal impedance, Ohm | 4 / 8 versions available |
| Power rating, W | 800 |
| Connectors | Banana jack screw terminals |
| Dimension (WxHxD), mm | 565 x 845 х 256 |
| Net weight, kg |
36 |
* dB SPL, IEC 60268-5 pink noise, 1W / 1m, half- and free- space
** dB SPL RMS, IEC 60268-5 pink noise, measured on nominal power
*** 2-hour power test, IEC filtered noise, 6 dB crest factor
Specification and Drawings
Manuals
Extras
Delivery time
2-3 weeks
