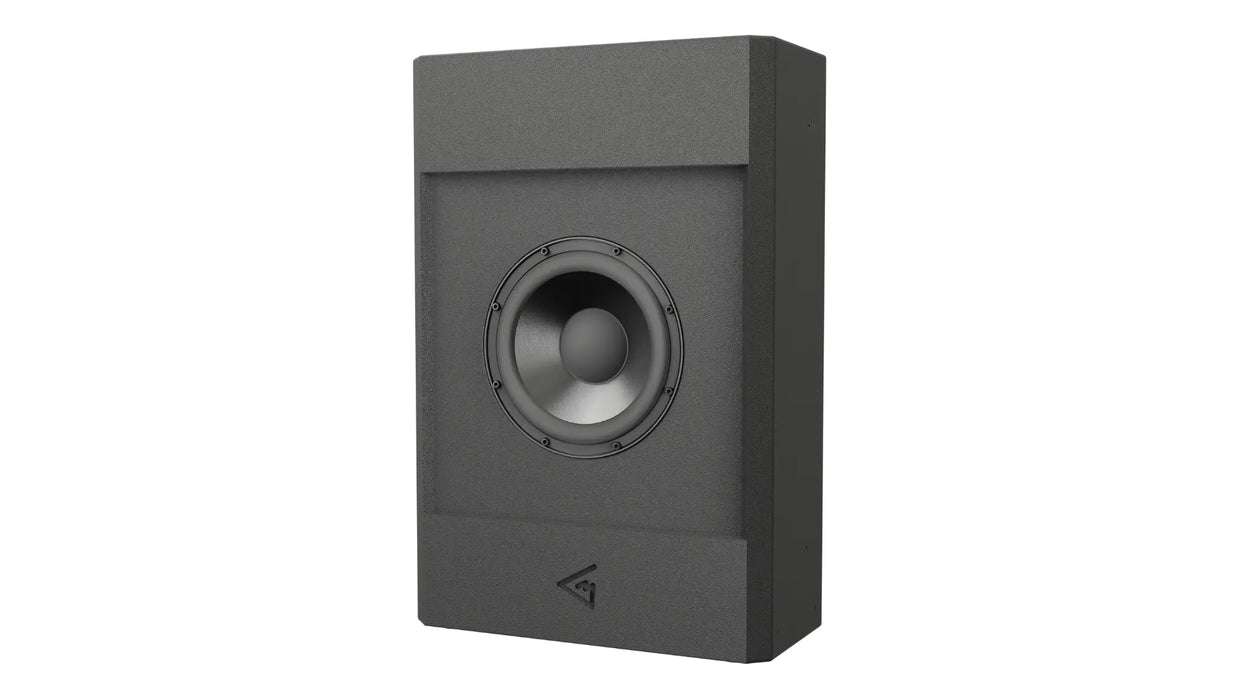

MAG Theatron DBA-12
Subwoofer
- Components: 12″
- Frequency range: 27 – 500 Hz
- Max continuous SPL: 117 dB
-
Power rating: 300 W
DBA12 is a speaker specially created for double bass array setup for unprecedented home cinema sound performance. A tailored 12-inch woofer features low distortion and outstanding sensitivity, while long-excursion rubber suspension extends the range of linear movement, significantly bringing down the distortion.
These subwoofers were created exclusively for Double Bass Array home cinema setup to deliver unprecedented immersion and smooth frequency throughout the entire listening area.
Double Bass Array involves using a subwoofer on the front and the back wall of the room, and actively eliminating standing waves. This allows delivering an even frequency response at the listening
DBA subwoofers are made following the sealed box architecture. This provides for smooth bottom-end roll-off for the most pleasant and natural listening experience.
Technical Data
| Frequency response (±3 dB), Hz | 33 – 200 |
| Frequency range (-10 dB), Hz |
27 – 500 |
| Max continuous SPL, dB | 117 |
| Sensitivity (1W/1m, half-space), dB | 92 |
| High-frequency driver | 12-inch (2-inch voice coil) rubber surround long-excursion woofer |
| Nominal impedance, Ohm | 8 |
| Power rating, W | 300 |
| Mounting | Antishock wall mounting |
| Connectors | Phoenix terminals |
| Dimension (WxHxD), mm | 565 x 845 х 250 |
| Net weight, kg |
32 |
* dB SPL, IEC 60268-5 pink noise, 1W / 1m, half- and free- space
** dB SPL RMS, IEC 60268-5 pink noise, measured on nominal power
*** 2-hour power test, IEC filtered noise, 6 dB crest factor
Specification and Drawings
Manuals
Extras
Delivery time
2-3 weeks
